NEMA 3R vs. 4X Enclosures: Key Differences & Selection Guide

The appropriate type of enclosure or junction box needs to be identified when choosing components for a project. Building and fire regulations require that every element in the design fulfills or surpasses particular performance standards.

The NEMA 3R and 4X come with rating codes indicating their performance characteristics, but what sets them apart, and how can one make a selection? Grasping the NEMA coding system is the initial step that will allow you to make a knowledgeable choice when choosing the most suitable components. Here are the details you should be aware of:

What is the meaning of NEMA?

Founded in 1962, the National Electrical Manufacturers Association (NEMA) is the largest trade organization for electrical manufacturers in the United States. The association represents more than 300 firms and upholds manufacturing standards for electrical parts for safety and economic reasons. In other words, NEMA collaborates with safety and code enforcement organizations to create industry safety and performance guidelines.

NEMA creates application manuals, research papers, and technical documents and oversees more than 700 safety standards. Despite being an American organization, NEMA's system is utilized in various other nations and has branches in Mexico.

A Guide to NEMA Ratings

NEMA has set ratings for numerous electrical components. Multiple elements are taken into account when generating a rating:

·Range of voltage

- Present

- Software usage

•Site

·Exposure

·Concerns regarding the environment

Components are organized into divisions and sections. The divisions specify the application field, whereas the sections denote the type of component.

The code consists of seven divisions, each containing between two and 15 sections.

The following seven divisions are:

1. Constructing Infrastructure

2.Developing Systems

3. Industrial Goods and Systems

4. Illumination Systems

5. Alliance for Medical Imaging and Technology (MITA)

6. Transport Networks

7. Products and Systems for Utility

While sections comprise categories like:

- Electrical Fixtures

·Cable Trays

·Confined areas

·Minimal Voltage Devices

·Engines and Dynamo Machines

For metallic or non-metallic electrical enclosures, the standard classification and section are "BI-EN":

·BI: Constructing Infrastructure

·EN: Cage

Multiple subsections provide additional clarification on particular applications.

Within the Enclosures part of the code are the Types that electrical professionals manage. At present, there are 13 categories of either metallic or non-metallic building infrastructure enclosures designed for non-hazardous areas:

·Categories 1, 2, 3, 3R, 3S, 4, 4X, 5, 6, 6P, 12, 12K, and 13

There are four categories of enclosures designed for hazardous locations:

·Categories 7, 8, 9, and 10

Every type of enclosure possesses distinct features that allow it to shield users from specific risks. Code numbers do not represent any unique characteristic or service tier. Nevertheless, types with higher numbers signify new performance needs that have been recognized.

What is the meaning of NEMA 3R?

When a parts list specifies a NEMA 3R junction box, an installer might be inclined to use a Type 3RX enclosure instead. In a single occurrence, this could be acceptable. Eventually, it would become too costly since the Type 3RX is much more expensive.

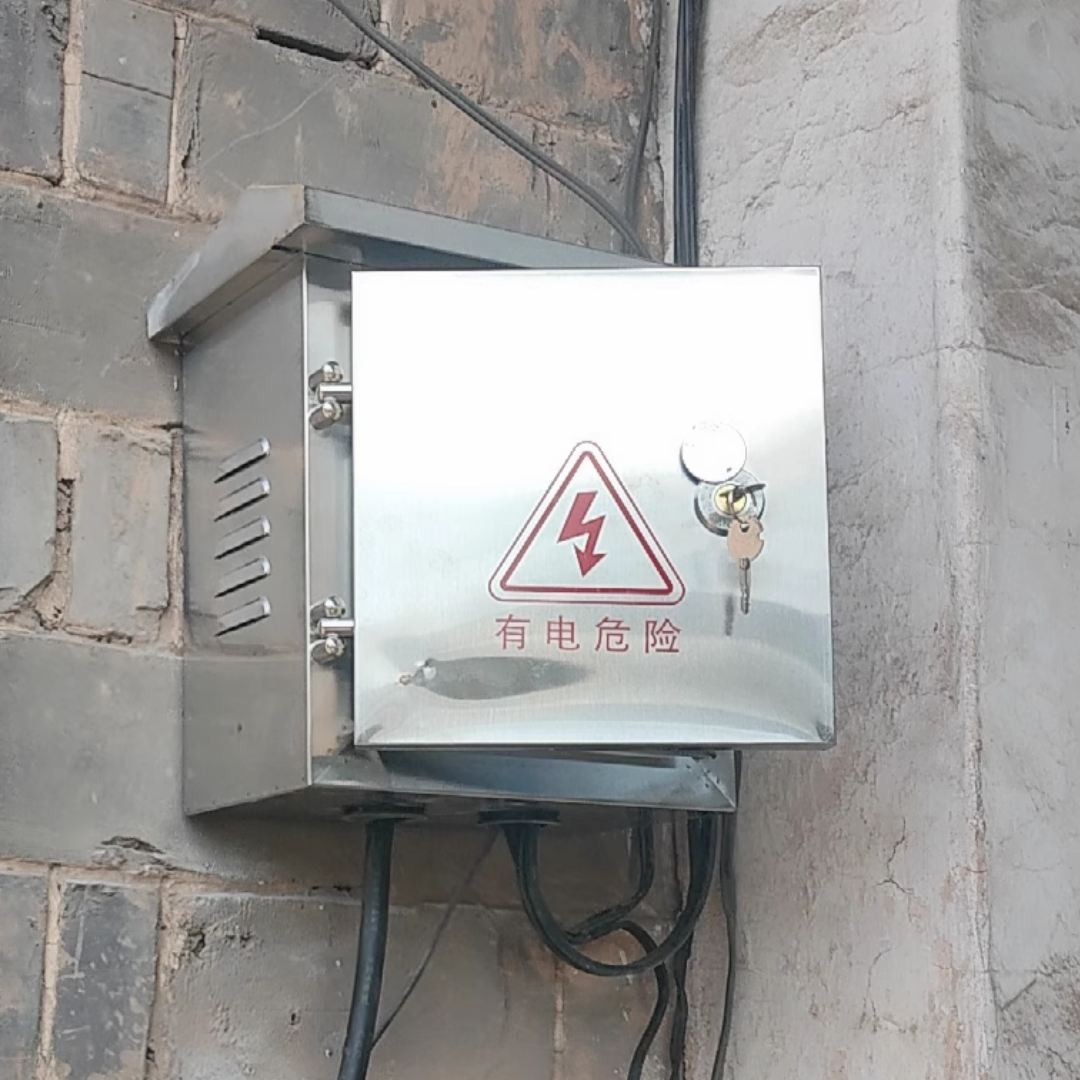

The Type 3R is suitable for both indoor and outdoor use. Similar to other enclosures, Type 3R safeguards individuals from unintended contact with live components. It offers defense against falling debris, as well as dirt, and indirect precipitation from rain and snow. Ice buildup on the outside will not affect the unit's performance. A Type 3R enclosure includes a drain or weep hole that allows any accumulated water to escape. It also features ventilation to enable moisture to exit.

What Is the Meaning of NEMA 4X?

A NEMA 4X enclosure can be designated when gathering parts for a project. Manufacturers design Type 4X enclosures with features that allow them to safeguard the internal components from harm caused by the external environment. An electrician must be cautious not to overlook the request for a Type 4X enclosure and instead utilize a Type 4 enclosure. Although the distinction is slight, it holds great importance.

The Type 4X enclosure is appropriate for both indoor and outdoor use. In addition to the main objective of all enclosures to safeguard people from unintended contact with electrical parts, the Type 4X enclosure also shields the electrical components from harm caused by external materials such as falling debris and airborne dirt or dust. Though the enclosure isn't waterproof, it features gaskets that can withstand splashes, sprays, and descending water from rain and snow. The development of ice on the enclosure will not affect its functionality. The Type 4X cabinet provides additional defense against corrosion and corrosive substances.

NEMA 3R frente a NEMA 4X

The performance features of NEMA 3R compared to NEMA 4x enclosures render them quite distinct. The two units are equivalent in a general sense as they both offer the same degree of safety to individuals who might encounter them. Their NEMA ratings, however, reveal particular characteristics that render them appropriate for various applications. The key distinction is that the Type 4X offers enhanced safeguarding for the internal component.

A Type 3R enclosure offers overall protection for the electrical equipment housed within it. This enclosure will safeguard against falling items and dirt but does not shield against tiny windblown particles such as dust or other airborne pollutants. Likewise, the Type 3R protects solely against falling water, such as rain, sleet, and snow. It does not guard against the entry of sprayed or splattered water. It lacks resistance to corrosion.

The Type 4X enclosure offers all the protective features of the Type 3R but at an enhanced level. The 4X features a seal to fend off dust and water blown by the wind. The seal will likewise safeguard the internal parts from water that is sprayed or splashed. Ultimately, the Type 4X offers a degree of corrosion resistance that the Type 3R lacks. The Type 4X is designed to handle a greater range of environmental factors than the Type 3R. This heightened degree of performance entails a significant expense.

Uses of NEMA 3R

It is essential to recognize that enclosures are perfect for common uses. The Type 3R enclosure offers a degree of protection from environmental factors when utilized in outdoor settings. Adding a drain hole enables the enclosure to remove any condensation or unexpected moisture that enters the interior.

Type 3R enclosures are great options for numerous indoor uses. The sturdy design safeguards people or items in the work zone from coming into contact with live components.

Ideal for environments with low dust and moisture, these enclosures are suitable for various applications involving general purpose devices, including:

·Device housing for mechanical switches

·Connection enclosures

·Illumination management

·Controls for equipment

·Devices for communication

·Devices for monitoring power

The NEMA 3R Enclosure is perfect for locations with minimal airborne dust or dirt carried by the wind. Steer clear of locations with harsh weather conditions, high-pressure water spray, or a corrosive environment.

Uses for NEMA 4X

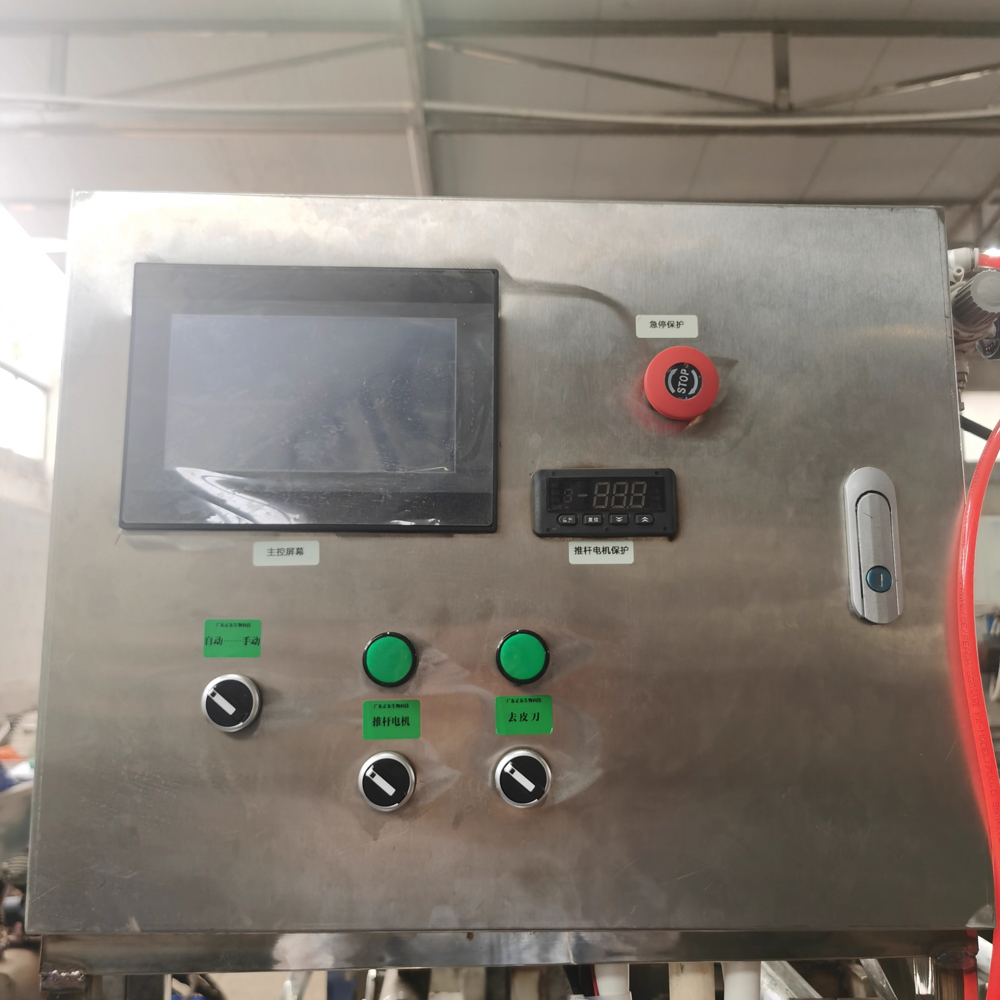

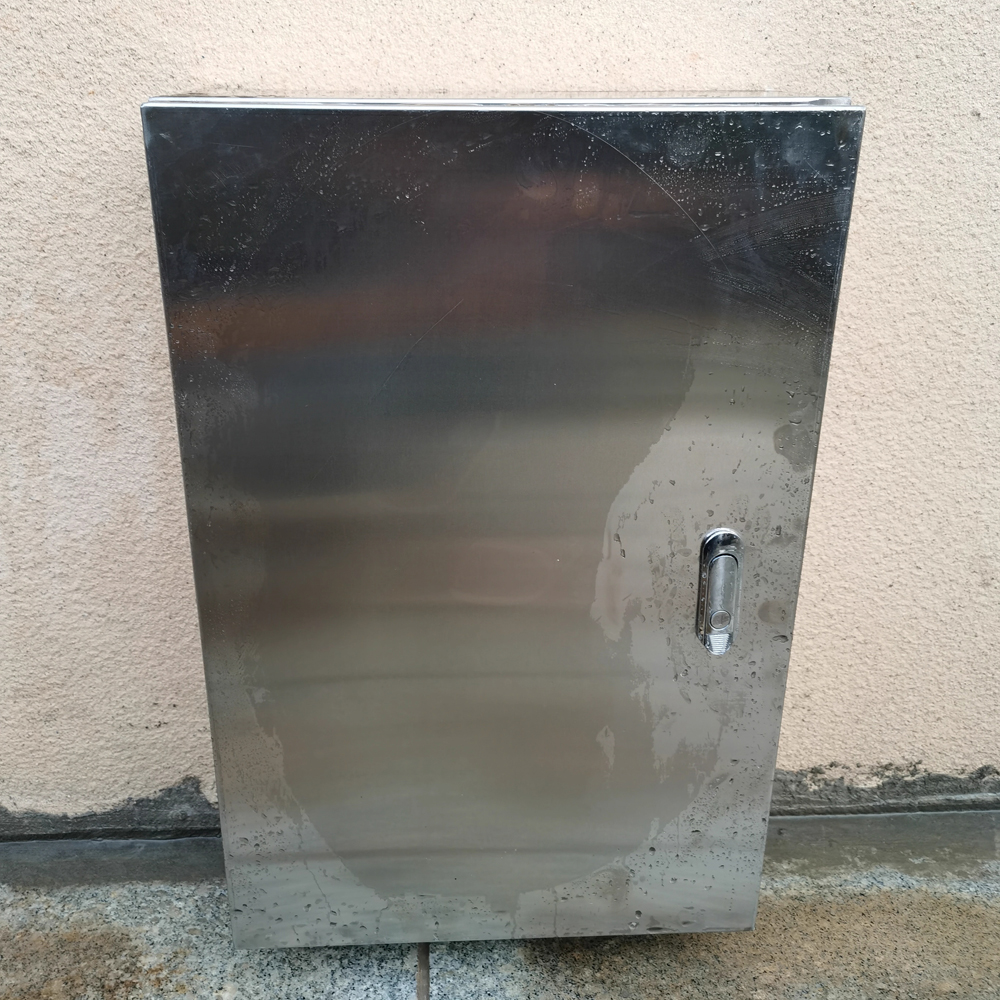

The NEMA Type 4X housing offers a higher degree of defense against airborne pollutants. These enclosures are completely sealed and feature rubber gaskets. A Type 4X is designed for outdoor use and is appropriate for severe indoor applications. It also offers a degree of resistance to corrosion.

NEMA 4X enclosures shield people from touching live parts inside. The enclosed space withstands dust and dirt carried by the wind. They additionally shield against unintentional water contact, splashes, and even water that is sprayed directly. These characteristics make them appropriate for direct exposure to rain and snow. The Type 4X is suitable for indoor environments exposed to elevated dust levels or pressurized water jets. Corrosion-resistant building materials allow the 4X enclosure to endure corrosive environments and substances.

NEMA 4X Enclosures serve as a great option for equipment like:

·Communication equipment

·Frequently used switching devices in maritime settings

·Devices for electronic control

·Controls and switches subjected to splashed or sprayed water

·Computer parts

NEMA 3R vs. 4X: Which Is Most Suitable for Your Use?

Take into account environmental and corrosive factors when choosing component enclosures for a project. Understanding the performance specifications and cost will help in making the correct decision when evaluating the distinctions between a NEMA 3R and a NEMA 4X enclosure or junction box. The NEMA 3R enclosure is typically the right option for various general-purpose applications. Take into account all possible forms of exposure that the enclosure might face. If the enclosure could encounter any exposure factors not addressed by the Type 3R code, you need to choose the Type 4X enclosure.

Factors related to exposure that should be taken into account are:

·Contact with direct weather conditions

·Contact with substantial amounts of dust

·Contact with airborne dust or soil

·Contact with sprayed or splattered water

·Contact with corrosive environment or substances

In applications that will not need enhanced protection, the 3R is the cost-effective option. Choosing a 4X enclosure when it isn't required is an avoidable financial cost.

Conclusion

Choosing the correct components for any electrical system design and selecting enclosures is crucial for both safety and performance. Understanding the distinctions between NEMA 3R and NEMA 4X enclosures will allow designers and installers to select a unit that has the appropriate performance attributes while only investing in necessary features.
