An IP enclosure is a protective housing designed to shield electrical components from dust, moisture, and impact. With various IP ratings, these enclosures ensure reliable performance in harsh environments, preventing damage and enhancing equipment longevity in industrial, outdoor, and demanding applications.
Our core Competitiveness: 17+years of professional experience in metal enclosure shinging in 2008, after 17 years of development, shinging box has become one of the most powerful large-scale sheet metal, Metal enclosure,metal products manufacturer.
IP Enclosures
Shinging - Enclosure Ratings - IP Enclosures
An IP enclosure is a protective housing designed to shield electrical components from dust, moisture, and impact. With various IP ratings, these enclosures ensure reliable performance in harsh environments, preventing damage and enhancing equipment longevity in industrial, outdoor, and demanding applications.
IP | Description |
IP44 | Protection for the enclosed equipment from the entry of solid articles with a diameter greater than 1mm into the enclosure. |
IP54 | Commonly used as traffic control cabinets because of the ability to protect electrical equipment from splashing water or rain conditions. |
IP55 | Weather-resistant enclosures that include a degree of protection from windblown dust and ingress of water. |
IP56 | Designed very similar to NEMA 3 enclosures, however, 3R enclosures can be ventilated. |
IP57 | Often called rain tight enclosures due to their excellent weather resistance. |
IP65 | Generally manufactured using 304 & 316 stainless steel due to its protection from corrosive materials. |
IP66 | Dust tight enclosures that are constructed without punch outs. |
IP67 | Completely dust-tight, meaning no dust can enter.Can be immersed in water up to 1 meter (about 3.3 feet) for up to 30 minutes without damage. |
IP68 | Completely dust-tight.Can soak for longer periods of time in water depths exceeding 1 meter (usually under specific conditions) |
1. Sizes can be customized
2. The holes can be customized
3. Material options: cold-rolled steel plate, 201 or 304 stainless steel, optional galvanized panel
4. Product thickness options: 0.8mm, 1mm, 1.2~2mm, etc.
5. Product style can be customized
Product Highlights

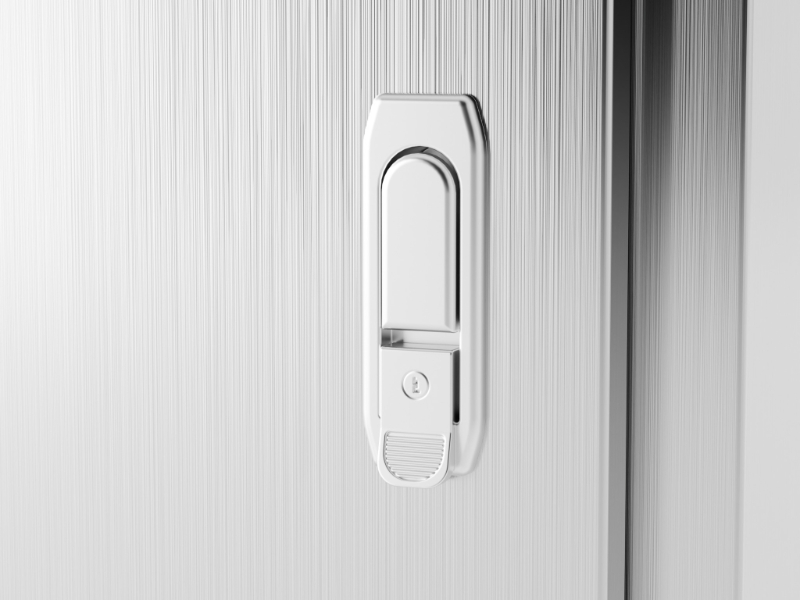

1. Durable Door Lock:
- Features a robust and aesthetically pleasing zinc alloy door lock for secure access control.
2. Effective Sealing Strip:
- One-piece molded pouring sealing strip ensures excellent waterproofing performance with a visually appealing design.
3. Easy Installation:
- Equipped with four pre-drilled holes at the bottom for straightforward installation of mounting brackets.
4. Rust-Resistant Screws:
- Stainless steel screws secure the box's floor, effectively preventing rust and ensuring long-lasting durability.
5. Strong Hinges:
- High-strength hinges provide a tight connection, facilitating effortless opening and closing of the box.
6. Enhanced Cable Entry:
- Square cable entry holes equipped with waterproof sponges significantly improve the overall waterproofing performance of the box.
Spot size(mm) | ||
200*200*150 | 500*400*250 | 700*500*300 |
300*200*150 | 500*500*200 | 800*600*200 |
300*250*200 | 500*500*250 | 800*600*250 |
400*300*150 | 600*400*200 | 800*600*300 |
400*300*200 | 600*400*250 | 1000*800*250 |
400*300*250 | 600*500*200 | 1000*800*300 |
400*400*150 | 600*500*250 | 1200*600*300 |
400*400*250 | 600*500*300 | 1200*800*250 |
500*400*200 | 700*500*200 | 1200*1000*250 |
