What Is a Solar Inverter Enclosure and Why Is It Important?

Content Plan: Solar Inverter Cabinet Box

1. What this document is for

• 1.1 This document lists the needs and plans for the solar inverter cabinet box.




• 1.2 The main goals are to make sure the inverter system is safe, works well for a long time, and does its job properly.




• 1.3 People use these boxes in big solar power plants, business and factory projects, and large home systems.

2. Basic information about the box

• 2.1 The box holds and protects the important electronic parts of the inverter and the communication gear.




• 2.2 The box must do several key things:

It must stop dust and water from getting inside.

It must control the heat inside it.

It must keep people safe from electricity.

It must be physically strong and secure.

It must not cause or be affected by electrical noise.

3. Details on design and building

• 3.1 Physical build



• 3.1.1 Materials:

Common materials are galvanized steel, aluminum mix, or stainless steel for tough weather.

We choose materials based on their strength, how well they fight rust, their price, and how easy they are to shape.

• 3.1.2 Strength:

The box must hold weight from wind, snow, or a person standing on it.

The box should not break easily from shaking or earth movements.

• 3.1.3 Sealing:

The box needs a good seal rating to keep out weather.

• 3.1.4 Fighting Rust:

The box must follow known rules for fighting rust.

The outside of the box needs special treatment to last long.

• 3.2 Heat control

• 3.2.1 Heat output: We calculate how much heat the inverter parts make.




• 3.2.2 Cooling ways:

Air holes: We can use vents for simple cooling.

Fans: We can use fans and air filters for better cooling.

Water cooling: We can use liquid for cooling in powerful or dirty places.

Cooling unit: We can add an AC unit for very hot places.

• 3.2.3 Heat plans: We check how air moves inside and how hot the parts get.

• 3.3 Electrical safety and inside layout

• 3.3.1 Inside arrangement:

We put high-power parts like inputs, outputs, and fuses in one area.

We put low-power control and communication parts in a separate area.

We use walls inside to keep these areas apart for safety.

• 3.3.2 Grounding: The box must have a strong ground connection point.

• 3.3.3 Cables:

We design where cables come in and out.

We plan how to run and hold cables neatly inside.

• 3.4 Electrical noise control

• 3.4.1 Shielding: We use special seals to stop electrical noise from leaking.




• 3.4.2 Filters: We add parts to clean electrical noise from power lines.




• 3.4.3 Rules: The box must meet standard rules for electrical noise.

4. How people use and interact with the box

• 4.1 Outside parts:

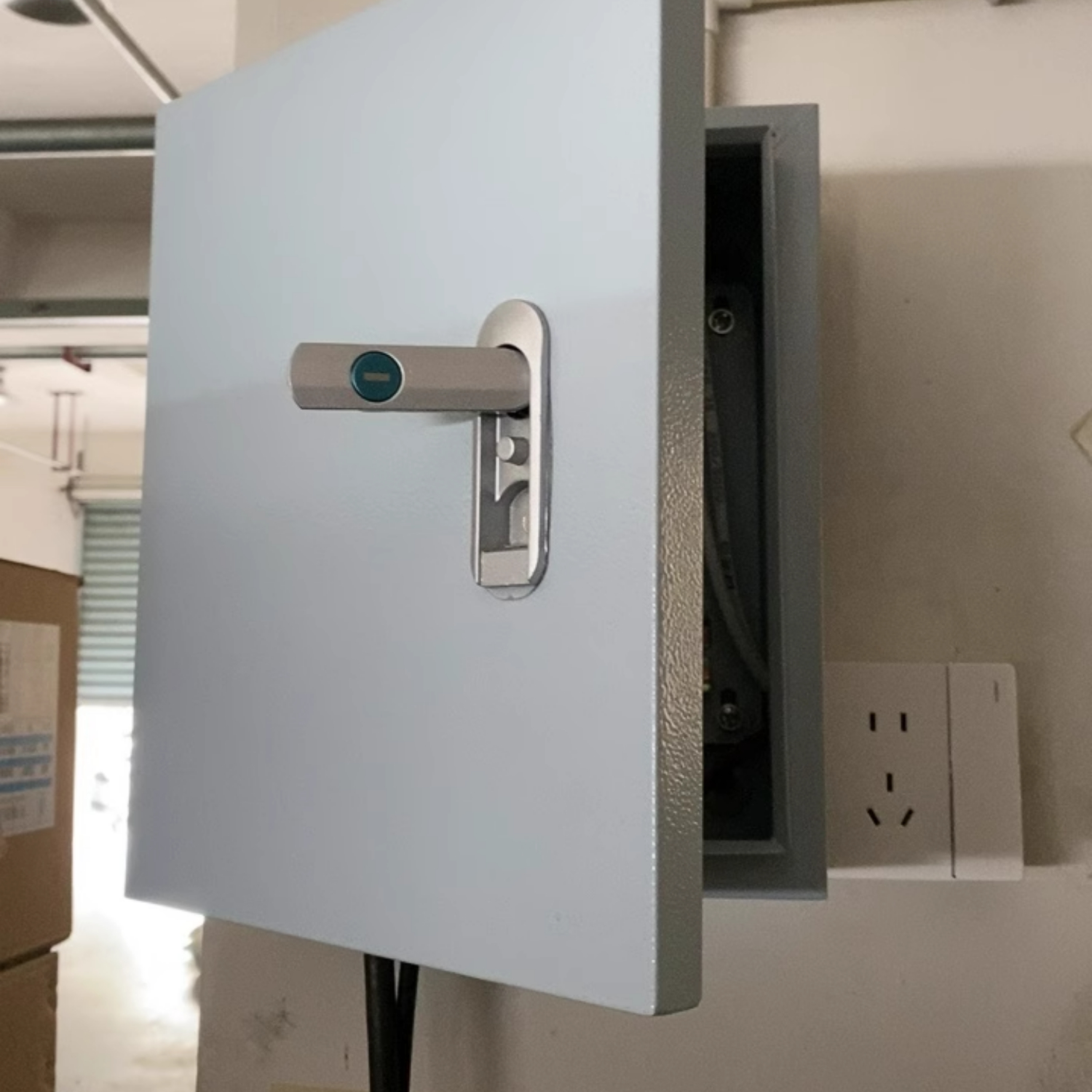

The door has strong locks.

The box has a window to see status lights.

• 4.2 Inside controls:

The box has a screen or buttons for local control.

It uses lights to show if it's on, has a problem, or is talking to other systems.

• 4.3 Safety parts:

A switch cuts high power when the door opens.

A big red button outside stops the system fast in an emergency.

The box has clear warning signs and pictures.

5. Rules and where it works

• 5.1 Standard rules:

The box follows general rules for electrical boxes.

It follows special safety rules for solar inverters.

It passes tests for tough environments.

• 5.2 Working conditions:

It works within a set hot and cold range.

It works within a set wet and dry range.

It works up to a certain height above sea level.

6. Putting it in, using it, and keeping it working

• 6.1 Installation: We show where to lift it, how to fix it to the ground, and how much space to leave around it.




• 6.2 Maintenance: The design lets people easily service parts like filters and fans.




• 6.3 Documents: We provide a guidebook and wiring pictures.
