What Makes A Security Camera Enclosure Truly Reliable?

Security cameras are everywhere. You see them on buildings, on streets, and in parking lots. But the camera itself is only part of the system. The Security camera enclosure that holds it is just as important. A bad enclosure can ruin a good camera. Water can get inside. Dust can cover the lens. Heat can damage the electronics. Vandals can break the housing. So what makes a security camera enclosure truly reliable? Let us look at the key factors.

Weather resistance is number one

Most security cameras go outside. They face rain, snow, and sun. They also face wind and dust. The Security camera enclosure must keep all of these out.

The IP rating tells you how well an enclosure blocks water and dust. IP66 is a common standard for outdoor cameras. It means the enclosure stops dust completely. It also means it can handle strong water jets. For extreme conditions, look for IP67 or IP68. These ratings allow for temporary or even continuous submersion.

The material matters too. Aluminum is lightweight and corrosion-resistant. But stainless steel is stronger. It handles harsh environments better. Grade 304 stainless steel works well for most outdoor uses. Grade 316 is even better for coastal areas with salt spray.

Vandal resistance keeps cameras safe

Outdoor cameras are easy targets. People throw rocks. They use baseball bats. They try to break the camera.

The IK rating measures impact resistance. IK10 is the highest standard. It means the Security camera enclosure can withstand 20 joules of impact. That is about the force of a 5-kg object dropped from 40 cm. A camera with an IK10 enclosure can survive most vandal attempts.

Stainless steel is naturally strong. It does not crack like plastic. It does not dent easily. For extra protection, choose thicker material. Some enclosures have reinforced corners. Others have tamper-proof screws that are hard to remove.

Thermal management protects the electronics

Cameras generate heat. So do the electronics inside. In hot weather, the enclosure can trap this heat. Overheating causes problems. The image quality drops. The processor slows down. The camera may shut off completely.

A good enclosure manages heat. It has vents or heat sinks. Some enclosures have built-in fans. Others use passive cooling with fins. These features let hot air escape. They keep the internal temperature safe.

In cold weather, moisture can form inside. Condensation ruins the lens. A reliable Security camera enclosure has a heater or a breathable vent. The heater stops condensation. The vent lets moisture vapor escape.

Clear optics for good image quality

What good is a camera if it cannot see? The Security camera enclosure must have a clear window for the lens. The window must be made of high-quality glass. Plastic scratches easily. Glass is better.

The glass should have an anti-reflective coating. This reduces glare from sunlight. It also helps with night vision. Some enclosures have wipers or washers. These keep the glass clean in dusty or rainy areas.

Cable management simplifies installation

A reliable Security camera enclosure makes installation easy. It has clear entry points for cables. It protects the cables from pulling and twisting.

Look for Security camera enclosures with cable glands. These seal the holes where cables go through. They stop water and dust from entering. They also prevent cables from being pulled out accidentally.

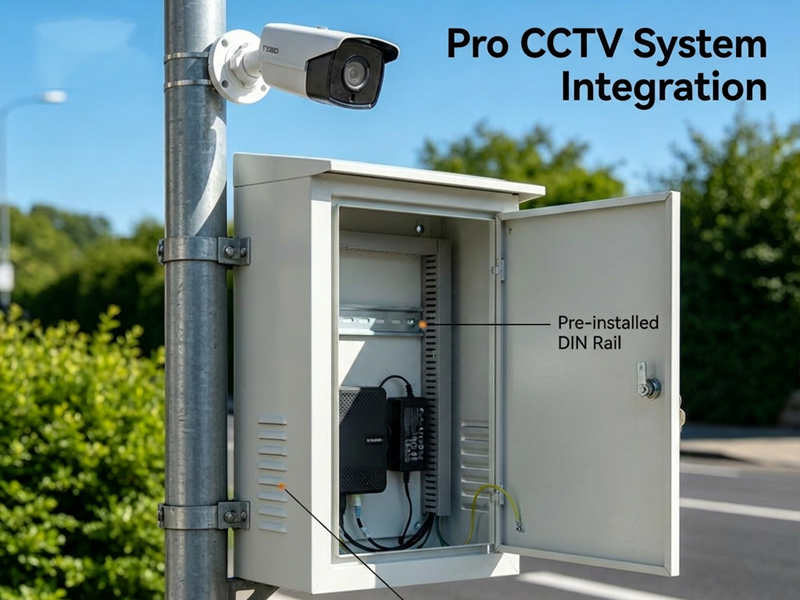

Some enclosures have a built-in junction box. This box gives you room to make connections. It keeps splices and terminals dry. It also saves time during installation.

Quality manufacturing means fewer problems

The best materials and design mean nothing without good manufacturing. Poor welds can let water in. Rough edges can damage cables. Bad seals can leak.

Precision matters. Good manufacturers use quality control at every step. They test for water resistance. They test for impact strength. They test for proper sealing.

Choose a manufacturer with the right experience

Shinging Technology Co., Ltd. has 17 years of experience in metal manufacturing. They offer complete solutions based on customer needs or professional drawings. Their capabilities include stainless steel manufacturing, metal stamping, sheet metal fabrication, electrical assembly, wiring, die-casting, and injection molding. This wide range of skills allows them to produce security camera enclosures that meet the highest standards. Whether you need IP66 weather protection, IK10 vandal resistance, or custom cable management, Shinging Technology can deliver.

A truly reliable security camera Security camera enclosure combines the right material, the right ratings, smart thermal design, clear optics, careful cable management, and quality manufacturing. When all these factors come together, you get a housing that protects your camera for years. That means fewer repairs, less downtime, and better security for your site.
